About Bare Fiber

HAPROS' BARE FIBER products are important tools in the medical laser field thanks to their high performance, customized service and wide range of applications.
Material and structure:High-quality quartz fiber is used, which has excellent optical transmission performance and high temperature resistance. These fibers typically have single-mode or multi-mode transmission characteristics to meet the needs of different laser equipment.
Connector compatibility:BARE FIBER products are designed to be compatible with 905 SMA connectors, enabling easy connection to a wide range of laser equipment.
Mechanical Properties:The tensile strength of the fiber is not less than 4.9N, and after the tensile strength test, the emission efficiency of the fiber can still be maintained at more than 90%. In addition, its minimum bending radius is 200d (d is the diameter of the fiber), and the emission efficiency of the fiber can be maintained at more than 90% under the bending condition.
Customization options: It can be customized according to customers' needs, including the length of the optical fiber, end-face treatment (e.g., flat surface, air gap, etc.), the color of the extension sleeve, and whether it is equipped with optical fiber cutter, optical fiber stripper, and optical fiber connector cleaning tool.Translated with DeepL.com (free version)
HAPROS - bare medical laser fible

Application

HAPROS - bare medical laser fiber

PROCTOLOGY

Bare fiber tip is used for delivering laser energy for obliterating haemorrhoidal nodes from inside out and preserve mucosa and sphinctor structures
HAPROS - TTTS laser surgery laser fiber

TTTS LASER SURGERY

Precivein bare fiber 600umcan be safely used for performing laser surgery in twin-to-twin transfusion syndrome (TTTS) therby significantly improving survival rates and neurologic outcome compared to amniodrainage.
HAPROS - pldd laser fiber

PLDD

Precivein bare fiber 600um/400um is utilised for Percutaneous laser disc decompression (PLDD) in which herniated intervertebral discs are treated by reduction of intradiscal pressure through laserenergy. A needle is inserted into the affected area of the intervertebral disc and laser fiber is injected through it to burn the nucleus pulposus with a laser
HAPROS - PERFORATOR VEIN INCOMPETENCE laser fiber

PERFORATOR VEIN INCOMPETENCE

Perforator vein insufficiency can result in pain,skin changes, and skin ulcers, and often merit intervention. Precivein 400 µ bare fiber isindicated for minimally invasive treatment of incompetence and reflux of superficial veins in the lower extremity

Advantage

Fiber core diameter ranges typically from 200 µm to 1000 µm
Connector with SMA 905 standard or free standing ferrule
High-transmission efficiency for all common medical wavelengths: 532 nm, 810 nm, 980 nm, 1470 nm, 1064 nm 1940 nm to 2100 nm
Double-packed in sterile pouches

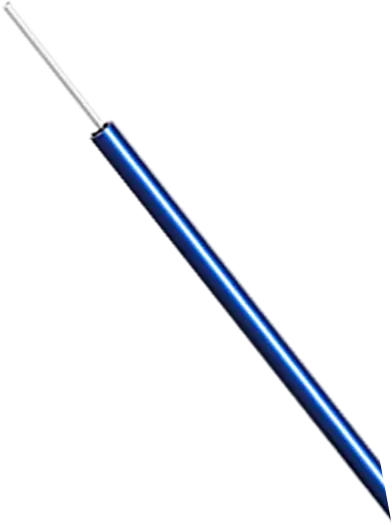

HAPROS - Bare laser fiber

Parameters

Fiber types:
Radial fiber
Connector:
SMA905
Fiber length:
3 Meters
Core Diameter:
200um/400um/600um/800um
Efficiency:
not less than 95%
